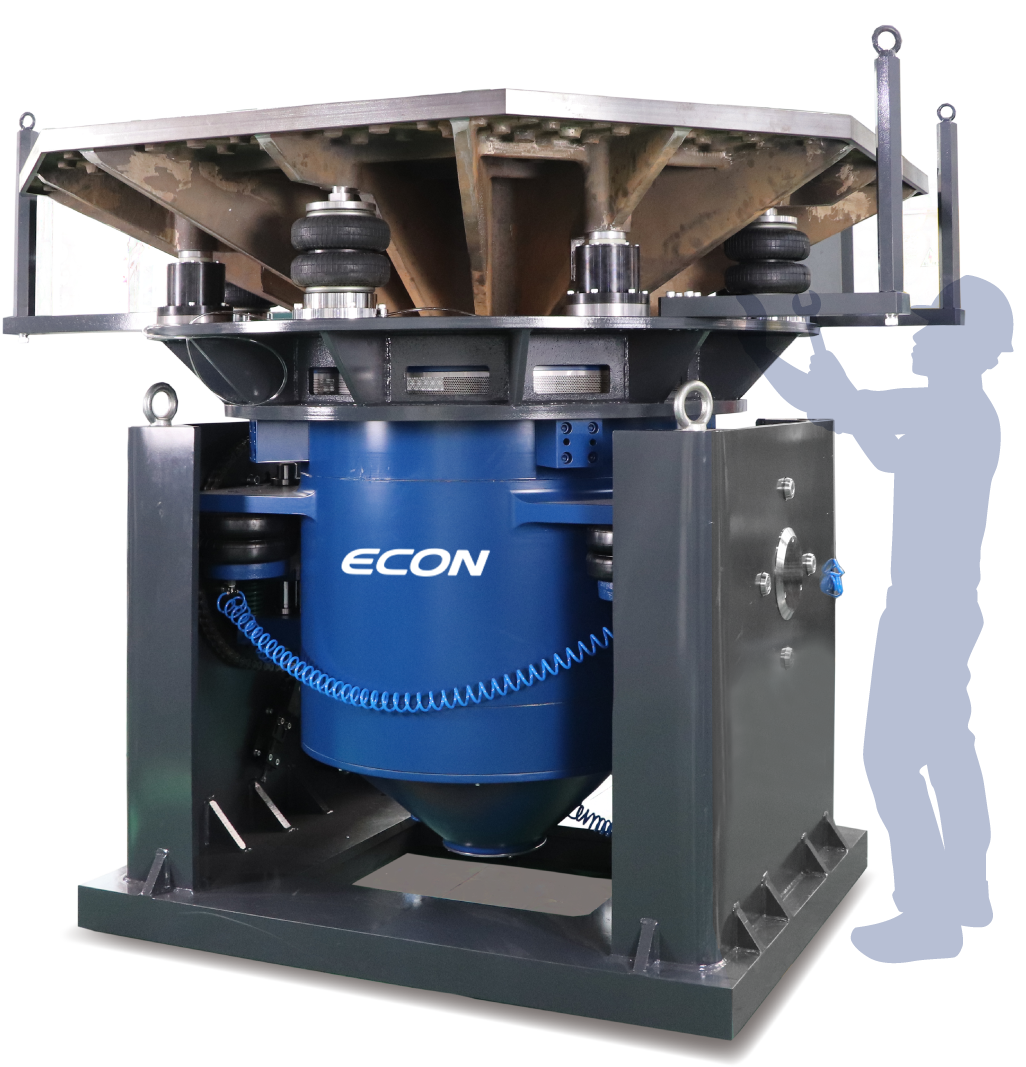

EDM-LS Series Electro-Dynamic Shaker

Vibration Testing System

  • Long Stroke for ISTA/Packaging Test

    EDM-LS series electro-dynamic vibration test system is suitable for vibration test requirements with long stroke. The frequency range of this series is 1-2500Hz, Max. acceleration up to 800m/s² (no-load), and Max. speed up to 1.8m/s.

    The system is mainly used in aerospace, transportation and other fields. It can meet the test requirements of random, sine and impact, and is suitable for the transportation environment test specifications stipulated by ISTA.

  • Sine Force Peak : 30kN

  • Sine Force Peak : 50kN

Test Object: For Heavy and large Test Objects

  • Packaging Test
  • Seismic Model Test
  • Powertrain

  • Features

    ・ The unique guidance system and support system for EDM-LS series;

    ・ Max.Displacement: 100mm;

    ・ Various models from 30KN to 50KN;

    ・ Easy operation;

    ・ Armature Diameter range from 350mm to 445mm;

    ・ Max.Load: 800kg;

  • Specifications

    System Model EDM-3200LS EDM-5000LS
    Sine Force Peak (kN) 30 50
    Frequency range (Hz) 1~2500 1~2500
    Max. Acceleration (m/s²) 750 800
    Max. Velocity (m/s) 1.8 1.8
    Max. Displacement pp(mm) 100 100
    Max. Load (kg) 500 800
    Effective armature mass (kg) 40 63
    Cooling method Air-cooled
    Model Shaker EDM-3200LS EDM-5000LS
    Power Amplifier VSA-H323B VSA-H563B
    Air Blower PBL-W30 PBL-W50
    Working Environment Temperature 0-40℃, humidity 0-90% (no condensation)
    Dimension (mm) *W×D×H Armature Diameter 350 445
    Shaker vertical 1192×1070×1146 1650×1150×1380
    horizontal 2100×1070×1146 2600×1600×1330
    Power Amplifier 600×940×2060
    Air Blowers 830×680×1340 1121×1024×2202
    Weight (kg) Shaker vertical About 2500 About 5365
    horizontal About 4600 (800 x 800 units) About 7800 (1000 x 1000 units)
    Power Amplifier 730 910
    Air Blower 162 394

  • Compatible amplifier

    VSA-H series
    Power Amplifier

  • Compatible Vibration Controller

    VT series
    Vibration Controller

  • Software Features

    Sine, Random, RSTD, Classical Shock, SoR, RoR, SRoR, SRS, Multi-Sine, Notching,
    FDR-LTH, FDR-TTH, Kurtosis, Vibro-Shock
