EDS series Electro-Dynamic Shaker

Vibration Testing System

  • Wide frequency range / High precision / Small footprint

    ECON introduces a new electro-dynamic vibration testing system with a wide frequency range, excellent index, high reliability, small footprint, convenient movement, simple operation and many other advantages.

    Based on the advanced closed-loop single-axis or multiaxis vibration controller, the shaker with low noise and foundation-free design, and the fully digital power amplifier. It can accurately simulate the effect of actual vibration and shock excitation on the reliability of the testing items.

Sine Force Peak : 3~6 kN

  • Vibration controller and PC sold separately.

Test Object: For Small to Medium-sized Test Objects

  • Small battery
  • Precise electronic machinery
  • IT machine
  • Car appliances
  • Road transport
  • Motor
  • Electronic control
  • Power module（IGBT）
  • Small electronic parts/boards
  • Precise machinery
  • Home appliances (display camera)
  • Electrical machinery (motor meter)
  • Test institution (laboratory)
  • Electric power research institute
  • Railway research institute
  • Information and communication research institute
  • Medical test
  • Special test
  • Product quality test agency
  • Earthquake model testing of houses and buildings
  • Characteristic testing of earthquake sensors and shutoff valves
  • Instrument
  • Control system (valve)
  • Inertial frame
  • Gyroscope
  • Instrument
  • Control system
  • Security
  • Fire protection (camera infrared thermal imager)

  • Features

    ・ Sine force range from 3kN to 6kN

    ・ Advanced design of trunnion isolation

    ・ Double magnetic circuit design

    ・ Optional foundation-free design available

    ・ High reliability with mean time between failures(MTBF)＞ 6,000 hours

    ・ Power amplifier noise -68dB

    ・ More effecitve cooling structural design

    ・ Fully digital power amplifier, easy connection

    ・ Sine, random,shock and mixed mode testing supported

    ・ Meet different testing conditions from single axis to multi axis

  • Specifications

    System model number EDS-300 EDS-600
    Sine force Peak (kN) 3 6
    Frequency range (Hz) 5~4000 5~3500
    Max. Acceleration (m/s²) 981 981
    Max. Velocity (m/s) 1.8 1.8
    Max. Displacement pp(mm) 25.4 51
    Max. Load (kg) 120 300
    Effective armature mass (kg) 3 6
    Cooling Method Air-cooled
    Model Shaker EDS-300 EDS-600
    Power Amplifier VSA-D402A VSA-D802A
    Air Blower PBL-W03 PBL-W06
    Working Environment Temperature 0-40℃, humidity 0-90% (no condensation)
    Dimension (mm) *W×D×H Armature Diameter 150 200
    Shaker vertical 730×595×630 870×664×806
    horizontal 1280×870×832 1600×985×824
    Power Amplifier 480×660×1110
    Air Blower 550×470×1110 770×559×1663
    Weight (kg) Shaker vertical About 520 About 990
    horizontal About 1150 (400 x 400 units) About 1700 (500 x 500 units)
    Power Amplifier 145
    Air Blower 48 118

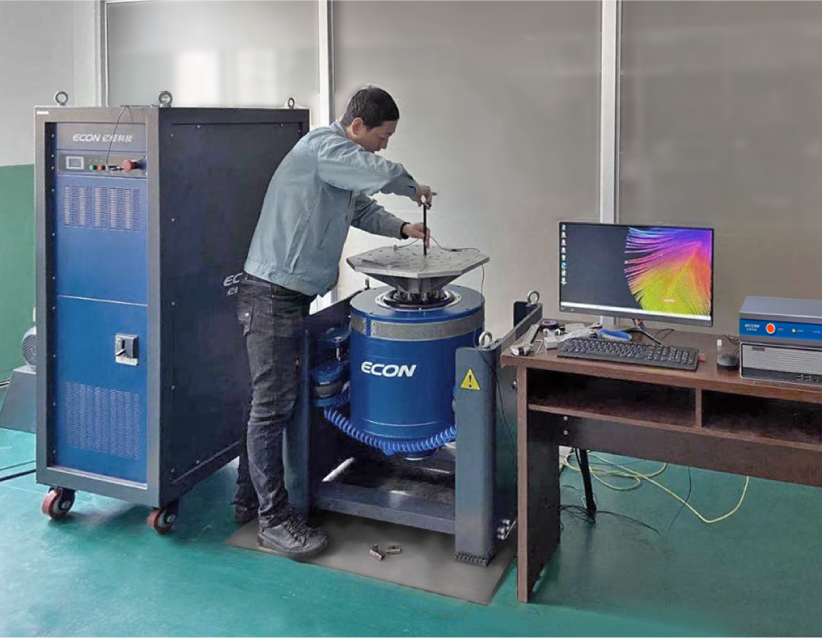

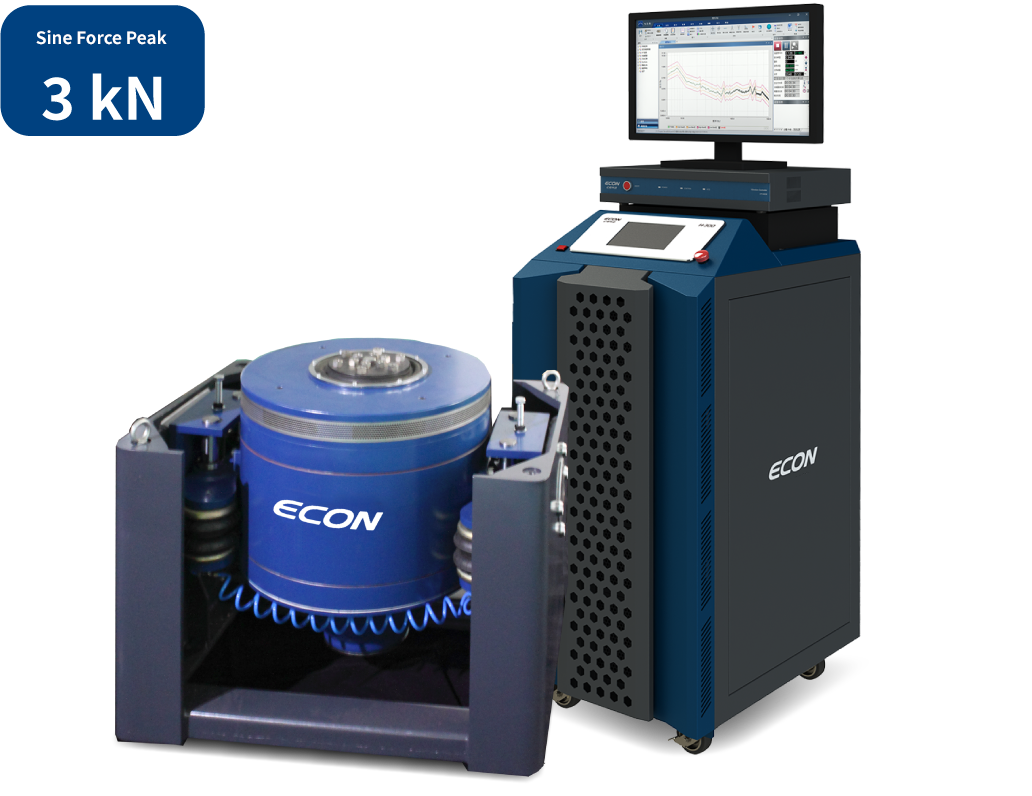

  • 3kN Vibration Test System

    EDS-300

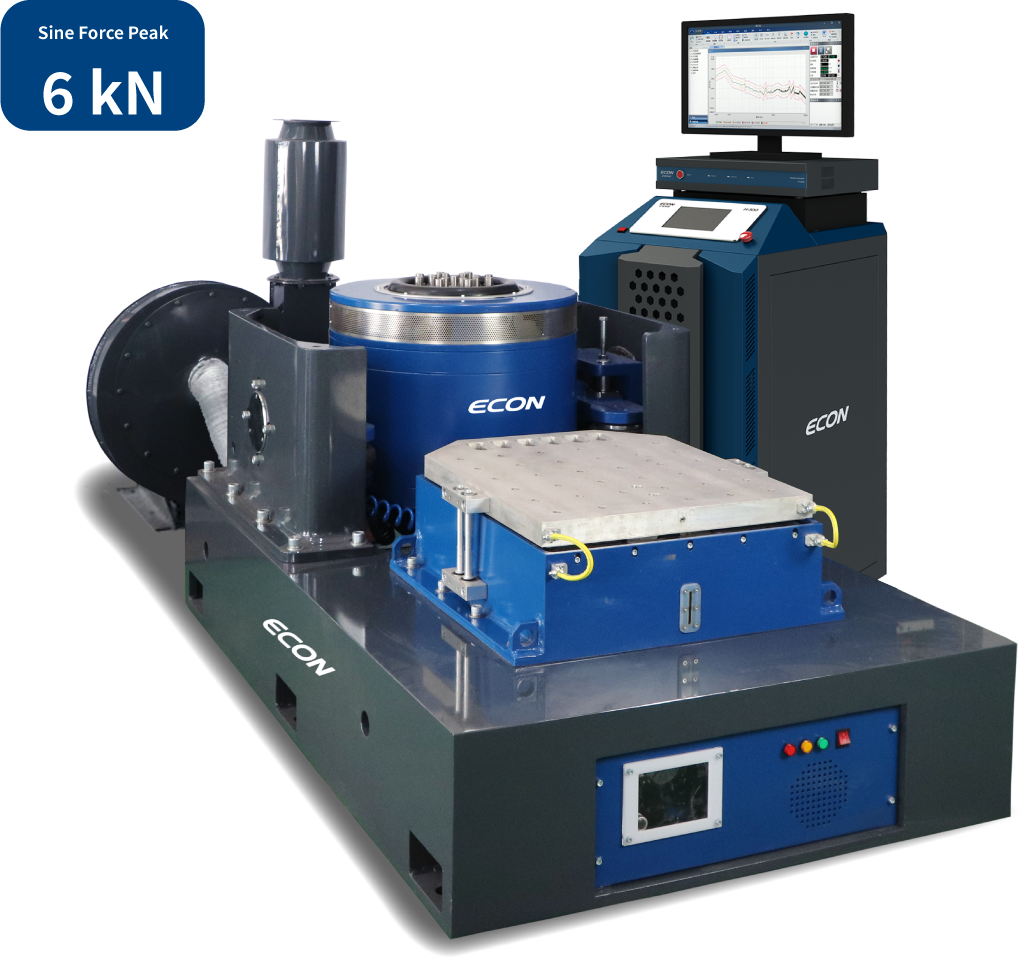

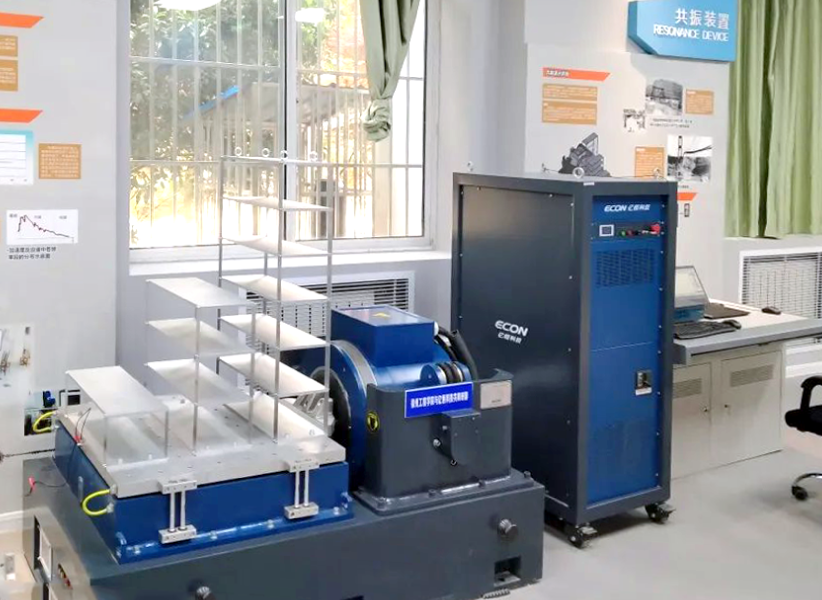

  • 6kN Vibration Test System

    EDS-600

VSA-H series amplifiers can also be used in the system. (The amplifier in the photo is the VSA-H series)

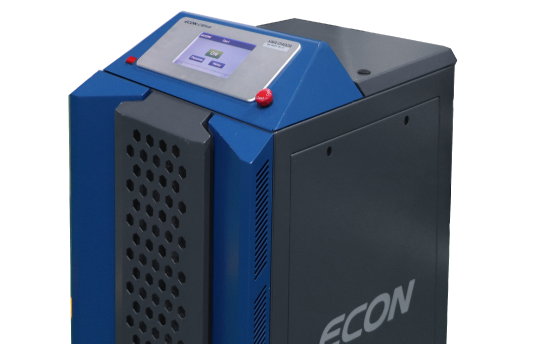

  • Compatible amplifier

    VSA-D series
    Power Amplifier

    VSA-D402A/VSA-D802A

  • Compatible Vibration Controller

    VT series
    Vibration Controller

    VT series

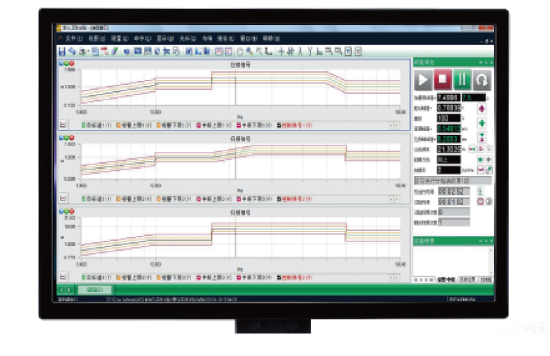

  • Software Features

    Sine, Random, RSTD, Classical Shock, SoR, RoR, SRoR, SRS, Multi-Sine, Notching,
    FDR-LTH, FDR-TTH, Kurtosis, Vibro-Shock
