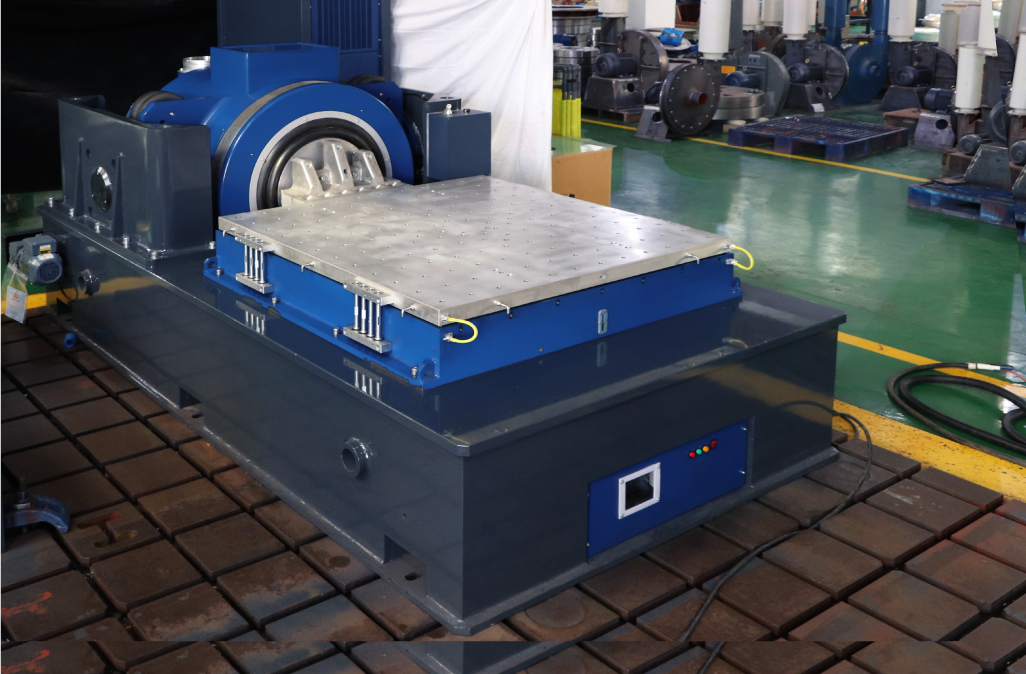

EDM series Electro-Dynamic Shaker

Vibration Testing System

  • Wide Application and High Reliability

    EDM series Electro- Dynamic Shaker have features of wide frequency range, excellent index, high reliability, simple operation and maintenance friendly.

    There are various models and specifications available for this series. The exciting force range is from 10kN to 50kN, and the Max. load is from 300kg to 1,000kg. The series of equipment is widely used in aerospace, electronics, automotive, transportation, quality inspection, education and research institutions.

Sine Force Peak : 10〜50kN


Test Object: For Small to Slightly Bigger Test Objects

  • Large battery
  • Medical equipment
  • PC cabinet
  • Traffic light
  • Medium and large home appliances
  • Motor
  • Tire
  • Car appliances
  • Shock absorber
  • Power train
  • Collision prevention device
  • Road transport
  • Vehicle charging pile
  • Electronic control
  • Precise electronic machinery
  • Precise machinery
  • Test institution (laboratory)
  • Electric power research institute
  • Railway research institute
  • Information and communication research institute
  • Medical test
  • Special test
  • Product quality test agency
  • Earthquake model testing of houses and buildings
  • Air transport
  • Valves
  • Line
  • Compressor
  • Rail transport
  • Gyroscope
  • Control system
  • Security
  • Fire protection (camera infrared thermal imager)

  • Features

    ・ Sine force range from 10kN to 50kN

    ・ Advanced design of trunnion isolation

    ・ Double magnetic circuit design

    ・ Auto-centering control system in air spring and electro-dynamic

    ・ Optional foundation-free design available

    ・ High reliability with mean time between failures(MTBF)＞ 6,000 hours

    ・ Power amplifier noise -68dB

    ・ More effecitve cooling structural design

    ・ Fully digital power amplifier

    ・ Sine, random,shock and mixed mode testing supported

    ・ Meet different testing conditions from single axis to multi axis

  • Specifications

    System Model EDS-1000 EDS-2000 EDS-3200 EDS-5000
    Sine Force Peak (kN) 10 20 32 50
    Frequency range (Hz) 5~3000 5~3000 5~2500 5~2500
    Max. Acceleration (m/s²) 981 981 981 981
    Max. Velocity (m/s) 1.8 1.8 1.8 1.8
    Max. Displacement pp(mm) 51 51 51 51
    Max. Load (kg) 300 300 500 1000
    Effective armature mass (kg) 10 20 32 50
    Cooling Method Air-cooled Air-cooled Air-cooled Air-cooled
    Model Shaker EDM-1000 EDM-2000 EDM-3200 EDM-5000
    Power Amplifier VSA-H123A VSA-H243A VSA-H323A VSA-H563A
    Air Blower PBL-W10 PBL-W20 PBL-W30 PBL-W50
    Working Environment Temperature 0-40℃, humidity 0-90% (no condensation)
    Dimension (mm) *W×D×H Armature Diameter 240 320 320 445
    Shaker vertical 870×670×830 1150×910×1150 1192×1070×1146 1650×1150×1320
    horizontal 1600×985×920 2100×1380×1195 2100×1380×1198 2600×1600×1330
    Power Amplifier 600×800×1560 600×940×2060
    Air Blower 770×559×1663 830×680×1340
    Weight (kg) Shaker vertical About 1100 About 2250 About 2500 About 5365
    horizontal About 2000 (600 x 600 units) About 4000 (600 x 600 units) About 4600 (800 x 800 units) About 7800 (1000 x 1000 units)
    Power Amplifier 420 710 730 910
    Air Blower 118 162

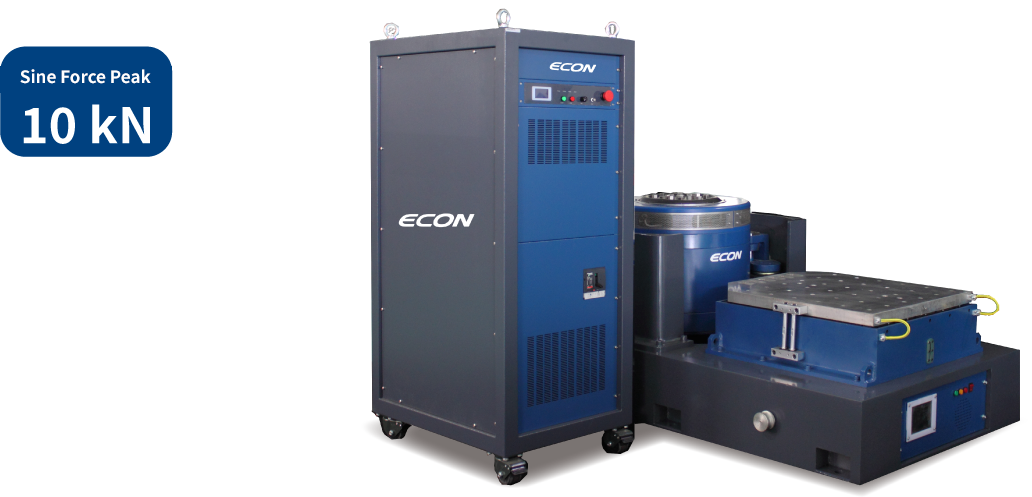

  • 10kN Vibration Test System

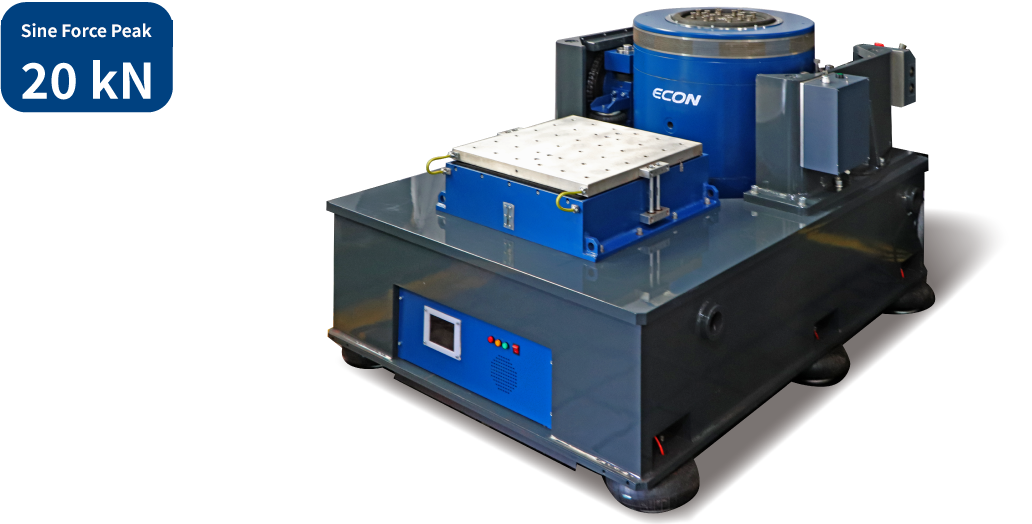

    EDM-1000

  • 20kN Vibration Test System

    EDM-2000

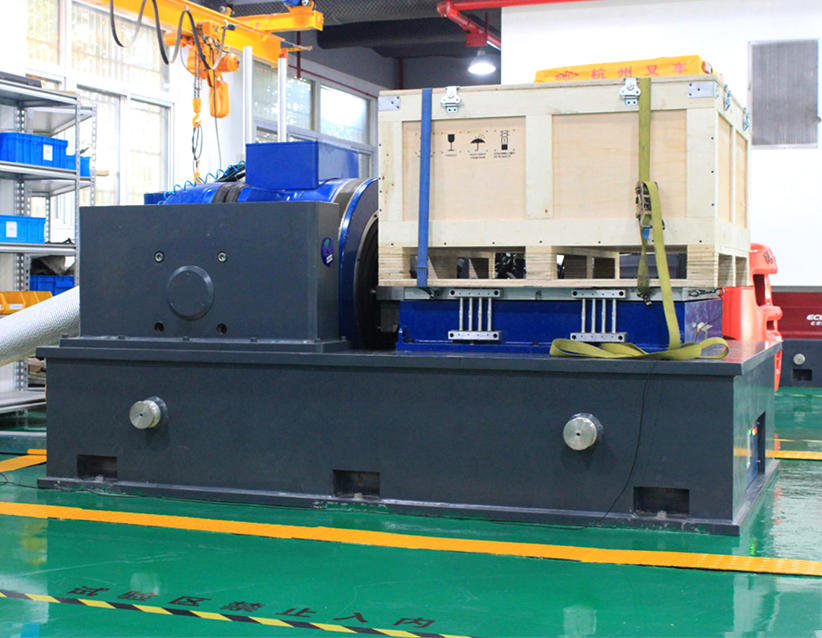

  • 32kN Vibration Test System

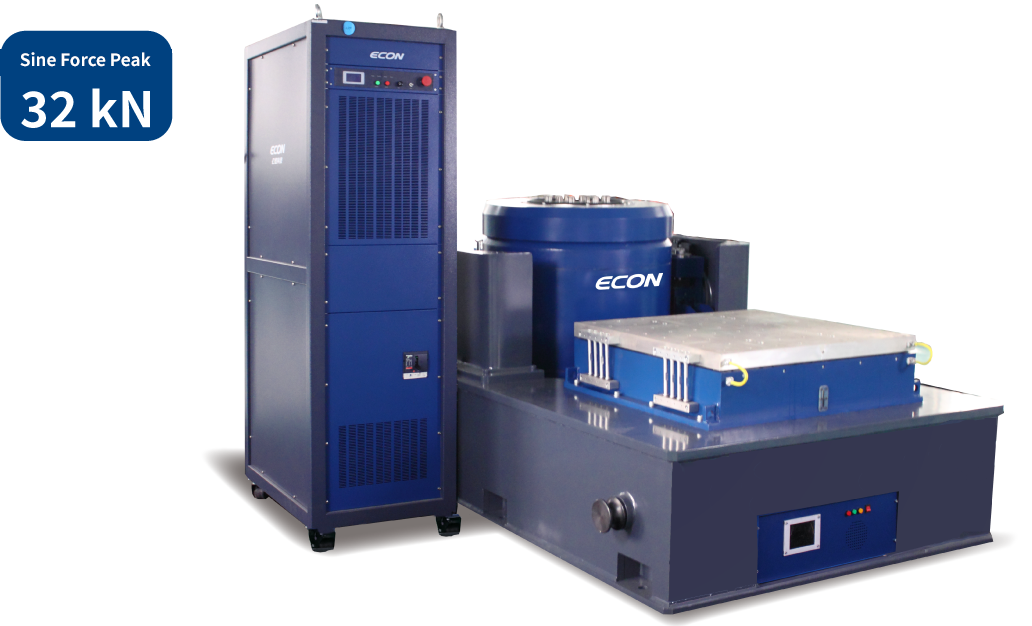

    EDM-3200

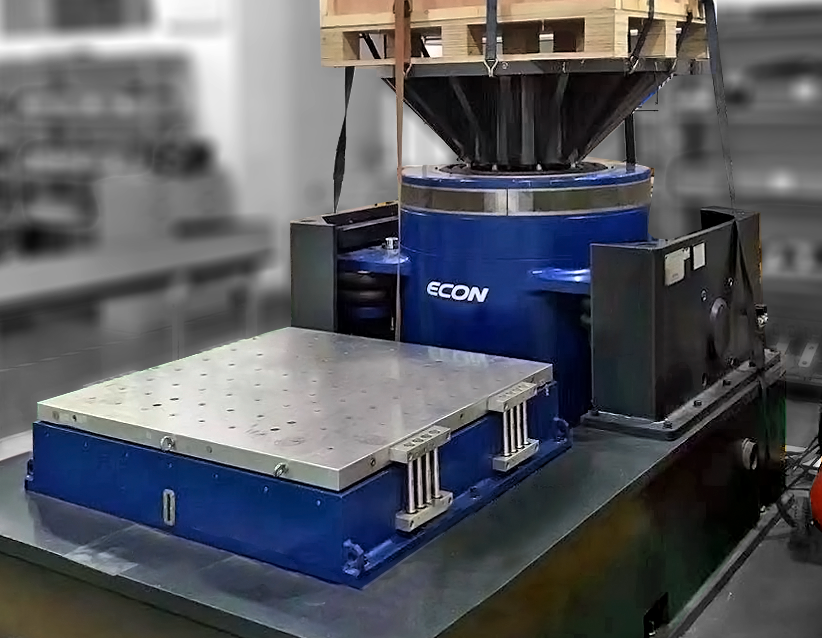

  • 50kN Vibration Test System

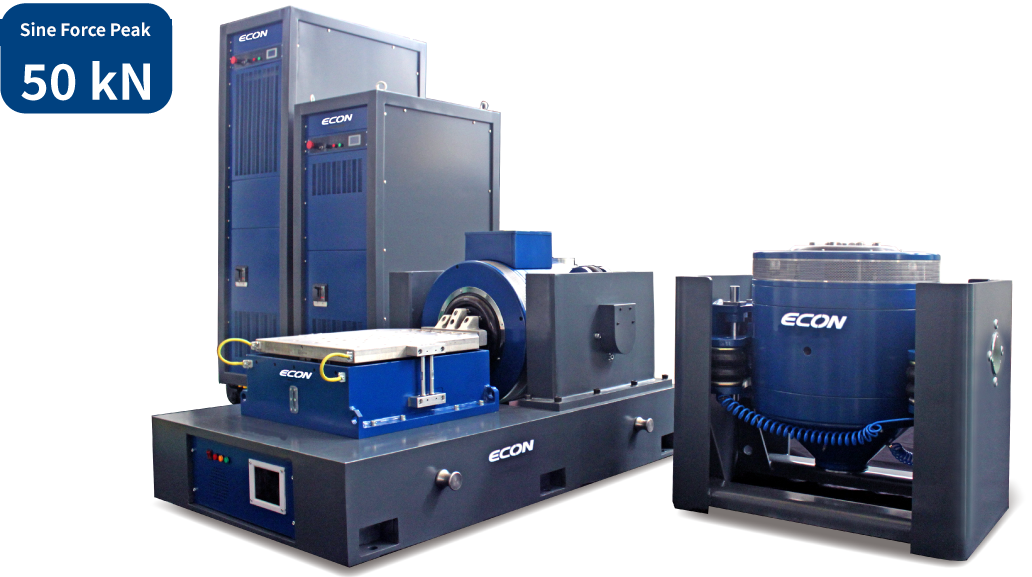

    EDM-5000

  • Compatible amplifier

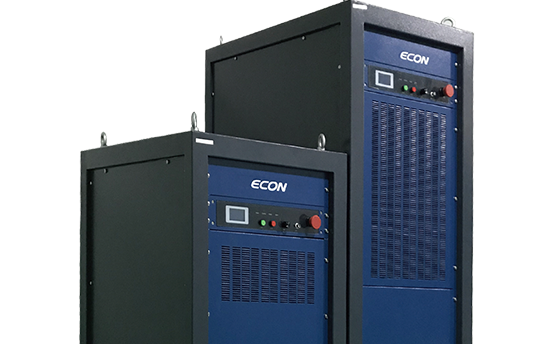

    VSA-H series
    Power Amplifier

  • Compatible Vibration Controller

    VT series
    Vibration Controller

  • Software Features

    Sine, Random, RSTD, Classical Shock, SoR, RoR, SRoR, SRS, Multi-Sine, Notching,
    FDR-LTH, FDR-TTH, Kurtosis, Vibro-Shock
